Brand Name : | ACE |
Price : | $16,800.00/pieces 1-1 pieces |
Delivery Time : | within 30 days |
T4 20ft iso tank container, Full Frame Potable Tank Container, which is widely used to transport kinds of liquid chemical medium.The shell is 316 stainless steel, the frame is made of strong steel Corten A or equal material, which are testing by LR.

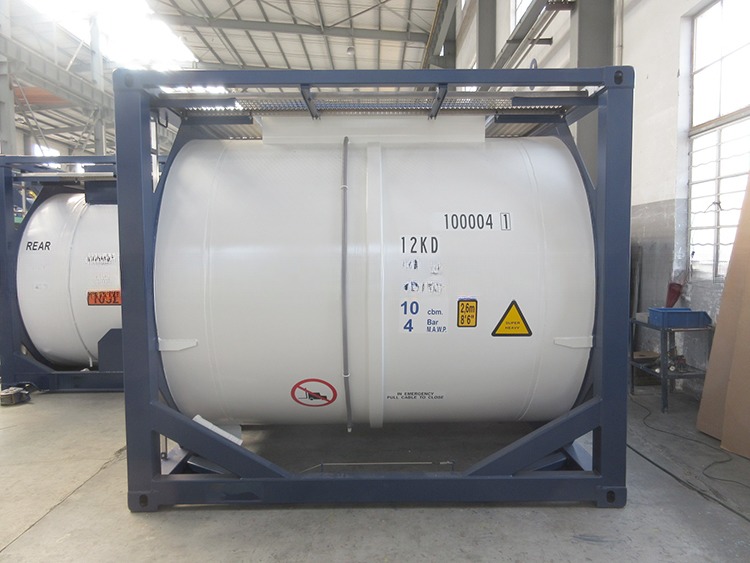

Our T11 10ft iso tank container is designed as perASME standard, and meeting IMO/IMDG, ISO, UN, CSC, TIR, UIC, TC, ADR/RID L4BN.The Capacity is 10000L.
Specifications - T11 10 iso tank container | ||||
Frame Dimensions (L x W x H) | 2991 x 2438 x 2591 mm | |||
Nominal Capacity | 10000 litre (±0.75%) | |||
Maximum Gross Mass | 16000 kgs | |||
Tare Mass | 2300 kg (± 3%) | |||
Design Temperature (Frame & Tank) | -40 to +130 °C | |||
Pressure | Working | 4.0 bar | ||
Test | 6.0 bar | |||
Material | Tank (Shell & Ends) | SANS 50028-7 Type 1.4402/1.4404 (C≤0.03%) | ||
Frame | SPA-H or equivalent | |||
Insulation | Shell | Not fitted | ||
Ends | Not fitted | |||
Steam Heating | Not fitted | |||
Manhole | 500mm low profile, 8 point fixing with Super Tanktyt Lid seal. | |||
Safety Relief Assembly | 1 x 2.5” BSP pressure relief valve without flameproof gauze. | |||
Air Inlet A | DN 40 ball valve terminating with 1½" BSP connection and cap. The assembly is situated off centre on a tangential tank pad. | |||
Top Discharge | 1 x 3” weld in pad (drilled with 6 x M12 PCD 168mm) completes with
blank flange. A siphon tube guide plate is welded on bottom floor of tank. | |||
Bottom Discharge | 1 x 3” 45° high-lift foot valve with opening handle and 3” clamped
butterfly valve terminating with 3” BSP stainless steel spigot and
dust cap with retaining chain. | |||
Thermometer | 1 off, Dual scale thermometer, -40° C to 160° C, fitted on rear end
to lower right side | |||
Document holder | A clear plastic document holder ø110mm is fitted to the rear right
hand side beam. A drain hole is provided at the lowest point. | |||
Calibration | A calibration plate marked in cm/litres is fitted on the spillbox
side wall. No calibrated stainless steel grade dipstick and bracket fitted. | |||
Design Code | ASME VIII DIV. 1 | |||
Approval | IMDG, US DOT CFR 49, RID/ADR, CSC, TC, TIR / Customs, UIC, ISO
1496/3 |
![]() |
