Brand Name : | ACE |
Price : | $16,900.00/pieces 1-1 pieces |
Delivery Time : | within 30 days |

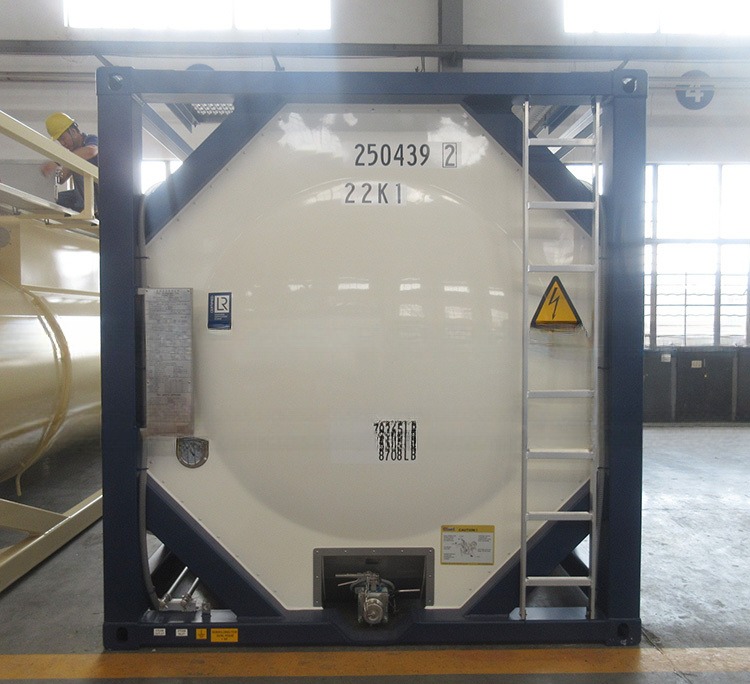

Specifications_20ft ISOTank Container | ||||
Tank Type | UN T4 Liquid Tank | |||
Full Frame | ||||
Aplicable Medium | General Liquid Chemicals | |||
Vessel Design Code | ASME VIII DIV.1 | |||
Approval Standard | IMDG, US DOT CFR 49, RID/ADR, CSC, TC, TIR, UIC, ISO | |||
Main Date | Frame Dimensions | 6058 x 2438 x 2591 mm | ||
Capacity | 26000 L | |||
Payload | 32300 Kgs | |||
Working | Pressure | 1.76 Bar (MAX) | ||
Temperature | - 40 to 130 ℃ | |||
Details | Vessel | 304 | ||
Discharge | DN80 (Top) & 3'' BSP(Bottom) | |||
Valves | Safety Relief Valve , Air Inlet Ball Valve 45° Internal Foot Valve integrated a Butterfly Valve | |||
Other | Manhole, Thermometer | |||
Please contact ACE to get technical specification for final
confirmation. |
![]() |
