UN T3 Fire Heating 20ft Bitumen ISO Tank Container with CSC Certificate and 16MnDR Vessel Material

ACE Container & Parts Co., Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap UN T3 Fire Heating 20ft Bitumen ISO Tank Container with CSC Certificate and 16MnDR Vessel Material from wholesalers

    Buy cheap UN T3 Fire Heating 20ft Bitumen ISO Tank Container with CSC Certificate and 16MnDR Vessel Material from wholesalers
    • Buy cheap UN T3 Fire Heating 20ft Bitumen ISO Tank Container with CSC Certificate and 16MnDR Vessel Material from wholesalers
    • Buy cheap UN T3 Fire Heating 20ft Bitumen ISO Tank Container with CSC Certificate and 16MnDR Vessel Material from wholesalers
    • Buy cheap UN T3 Fire Heating 20ft Bitumen ISO Tank Container with CSC Certificate and 16MnDR Vessel Material from wholesalers
    • Buy cheap UN T3 Fire Heating 20ft Bitumen ISO Tank Container with CSC Certificate and 16MnDR Vessel Material from wholesalers
    • Buy cheap UN T3 Fire Heating 20ft Bitumen ISO Tank Container with CSC Certificate and 16MnDR Vessel Material from wholesalers
    • Buy cheap UN T3 Fire Heating 20ft Bitumen ISO Tank Container with CSC Certificate and 16MnDR Vessel Material from wholesalers

    UN T3 Fire Heating 20ft Bitumen ISO Tank Container with CSC Certificate and 16MnDR Vessel Material

    Ask Lasest Price
    Brand Name : ACE
    Price : $17,400.00/pieces 10-19 pieces
    Delivery Time : within 30 days
    • Product Details
    • Company Profile

    UN T3 Fire Heating 20ft Bitumen ISO Tank Container with CSC Certificate and 16MnDR Vessel Material

    UN T3 Fire Heating 20ft Bitumen ISO Tank Container with CSC Certificate and 16MnDR Vessel Material
    Hot Selling Procuct
    Product Descriptions

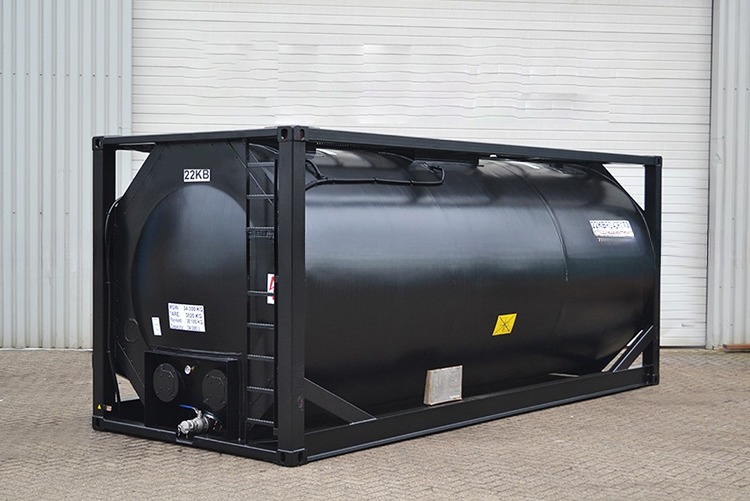

    20ft ISO Tank Container

    Low Cost

    Saving land and sea freight, lower cost when long-term use.

    Convenient and fast

    Fast and Convenient for Loading and unloading, washing. Door to door by land transportation, railway, sea transportation.

    Safety and Eco-Friendly

    No leak or pollute the environment, and No pollute the goods themselves. The safest way to transport chemicals and food internationally recognized.
    UN T3 Fire Heating 20ft Bitumen ISO Tank Container with CSC Certificate and 16MnDR Vessel Material

    T3 Type Portable 20ft ISO Bitumen Container:

    1. Approval by LR, BV.

    2. Meet requirement of IMDG, CFR49, ADR/RID, AAR 600, CSC, TC, TIR, ISO UIC, US/UK DOT

    3. Materials: Frame-SPA-H/Q345D, Shell-16MnDR.

    4. Logo: as per your requirements.

    5. Design Temperature: -20 to +170 centigrade.

    6. Design Code: ASME VIII Div. 2.

    UN T3 Fire Heating 20ft Bitumen ISO Tank Container with CSC Certificate and 16MnDR Vessel Material

    20ft ISO Bitumen Container:

    Frame Dimensions: 20' x 8' x 8'6"

    Capacity: 20,000 Litres +/- 2%

    M.G.W.: 30,480 kgs

    Tare (est.): 6,700 kgs

    Max Payload: 23,780 kgs

    Working Pressure: 1.76 Bar

    Design Temp: -20℃ to +170℃

    UN T3 Fire Heating 20ft Bitumen ISO Tank Container with CSC Certificate and 16MnDR Vessel Material
    UN T3 Fire Heating 20ft Bitumen ISO Tank Container with CSC Certificate and 16MnDR Vessel Material
    UN T3 Fire Heating 20ft Bitumen ISO Tank Container with CSC Certificate and 16MnDR Vessel Material
    UN T3 Fire Heating 20ft Bitumen ISO Tank Container with CSC Certificate and 16MnDR Vessel Material
    UN T3 Fire Heating 20ft Bitumen ISO Tank Container with CSC Certificate and 16MnDR Vessel Material
    UN T3 Fire Heating 20ft Bitumen ISO Tank Container with CSC Certificate and 16MnDR Vessel Material
    UN T3 Fire Heating 20ft Bitumen ISO Tank Container with CSC Certificate and 16MnDR Vessel Material
    UN T3 Fire Heating 20ft Bitumen ISO Tank Container with CSC Certificate and 16MnDR Vessel Material
    Product Datasheet
    T3 Type Portable 20ft ISO Bitumen Container:
    Frame Dimensions
    (L x W x H)


    External
    6058 x 2438 x 2591
    MM
    20 x 8 x 8.5
    FT
    Max. Capacity (Nominal)
    20,000
    CBM
    Max. Gross Weight
    30,480
    KGS
    Tare Weight (Nominal)
    6,700
    KGS
    Max Payload
    23780
    KGS

    Pressure
    Working pressure
    1.76
    Bar
    Test pressure
    2.65
    Bar
    Design
    Temperature
    Frame

    -20℃ to +170 ℃
    Tank

    Material
    Frame
    GB/T 1591-Q345D
    Tank
    16MnDR

    Thickness
    Shell
    6.0mm
    Ends
    6.0mm after forming
    Corner Casting
    ISO 1161 - 8 off, 8pcs
    Approval
    IMDG T3, CFR 49, ADR/RID, CSC, TC, TIR, ISO, US/UK DOT
    Packing & Delivery

    Packing:usually we will arrange SOC empty container if you have no cargoes to load in China.


    Delivery: within 30 days after we received your deposit.

    Our Company

    ACE Container & Parts Co., Ltd.

    We are very famous and professional Container and Parts supplier in China, and have been container line for over 10 years, also have exported our product to 55 countries by the end of 2015, including Japan, Korea, Southeast Asia, North and South America, Africa etc.

    With the increment of requirement for offshore equipment, ACE Container & Parts also arrange offshore equipment production for Oil and Gas platform as per your customized requirement, all of them are design as per DNV2.7-1 & EN12079 standard.

    Main Products: ISO Dry Container, Reefer Container, Offshore Equipment, All kinds of Container Parts and Customized Special Container

    UN T3 Fire Heating 20ft Bitumen ISO Tank Container with CSC Certificate and 16MnDR Vessel Material
    UN T3 Fire Heating 20ft Bitumen ISO Tank Container with CSC Certificate and 16MnDR Vessel Material
    UN T3 Fire Heating 20ft Bitumen ISO Tank Container with CSC Certificate and 16MnDR Vessel Material
    UN T3 Fire Heating 20ft Bitumen ISO Tank Container with CSC Certificate and 16MnDR Vessel Material
    UN T3 Fire Heating 20ft Bitumen ISO Tank Container with CSC Certificate and 16MnDR Vessel Material
    UN T3 Fire Heating 20ft Bitumen ISO Tank Container with CSC Certificate and 16MnDR Vessel Material
    FAQ

    Q:. Are your iso tank containers brand new?
    Yes, our all containers are brand new.


    Q: Can you provide the drawing for confirmation?
    Sure, we'll provide the drawing after order confirmed before production.


    Q: Do you have Small or Large Volume Tank Container?
    Sure, we could do Tank Container form 1000L to 60000L.

    And could produce offshore Tank as per DNV2.7-1 / EN12079 Standard.


    Q: Do you provide OEM Service?
    Yes, we have a first-class team and could design as per your requirement.


    Q: Does your iso tank container meet with international requirement?
    All of our iso tank container will be approval by BV //LR / CCS and meet with below requirement.
    ISO 1496/3
    UN Transport of Dangerous Goods
    UIC International Rail Approval
    TIR International Transport Goods under Custom Seal
    CSC International Convention for Safe Containers
    DOT US Code Federal Regulations CFR49
    DOT UK Carriage of Dangerous Goods
    CTC Canadian Transport Commission (Rail)
    AAR American Association of Railroads
    FRA Federal Rail Association USA
    BAM G.D.R Domestic Approval
    ISO/TC11
