    45 m3 ISO UN T75 Cryogenic 40ft Tank Container for LNG Liquid Oxygen Carbon Dioxide LIN LOX LAR BV CSC Certified 18Bar

    Ask Lasest Price
    Brand Name : ACE
    Price : $78,000.00/pieces 1-1 pieces
    Delivery Time : within 30 days
    • Product Details
    • Company Profile

    45 m3 ISO UN T75 Cryogenic 40ft Tank Container for LNG Liquid Oxygen Carbon Dioxide LIN LOX LAR BV CSC Certified 18Bar

    45 m3 ISO UN T75 Cryogenic 40ft Tank Container for LNG Liquid Oxygen Carbon Dioxide LIN LOX LAR BV CSC Certified 18Bar
    Hot Sale Products
    Advantage of Tank Container

    ISO UN T75 Cryogenic 40ft Tank Container


    Low Cost
    Saving land and sea freight, lower cost when long-term use.
    Convenient and fast
    Fast and Convenient for Loading and unloading, washing. Door to door by land transportation, railway, sea transportation.
    Safety and Eco-Friendly
    No leak or pollute the environment, and No pollute the goods themselves. The safest way to transport chemicals and food internationally recognized.

    45 m3 ISO UN T75 Cryogenic 40ft Tank Container for LNG Liquid Oxygen Carbon Dioxide LIN LOX LAR BV CSC Certified 18Bar
    Product Description
    45 m3 ISO UN T75 Cryogenic 40ft Tank Container for LNG Liquid Oxygen Carbon Dioxide LIN LOX LAR BV CSC Certified 18Bar

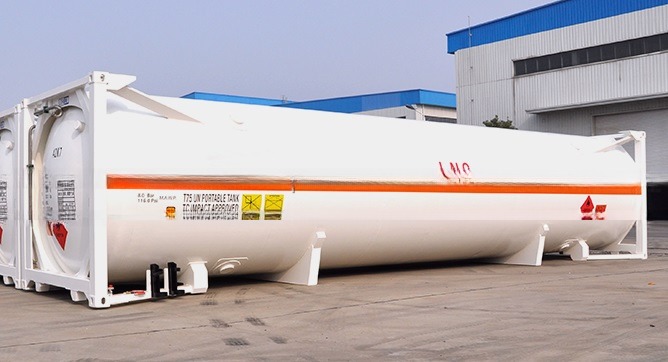

    UN T75 Cryogenic 40ft ISO LNG Tank Container

    Natural gas has the characteristics of high heat value and low pollution, which has become the ideal clean energy. Liquefied natural gas to LNG transport, higher than compressed natural gas (CNG) bicycle transport capacity.

    LNG tank containers (hereinafter referred to as "LNG tanks") can be transported by road, railway, water and other ways due to their mobility and flexibility, thus becoming the main means of transportation for LNG.

    The main structural type LNG tank of LNG tank is composed of tank, operation box and frame. The tank and frame form the tank box through a short half cylinder, strip support, and special steel pipe. The one end of the tank is equipped with the operating box, which controls the valve and the safety device, and USES the centralized layout to facilitate the loading and unloading of the medium.
    45 m3 ISO UN T75 Cryogenic 40ft Tank Container for LNG Liquid Oxygen Carbon Dioxide LIN LOX LAR BV CSC Certified 18Bar
    45 m3 ISO UN T75 Cryogenic 40ft Tank Container for LNG Liquid Oxygen Carbon Dioxide LIN LOX LAR BV CSC Certified 18Bar
    45 m3 ISO UN T75 Cryogenic 40ft Tank Container for LNG Liquid Oxygen Carbon Dioxide LIN LOX LAR BV CSC Certified 18Bar
    45 m3 ISO UN T75 Cryogenic 40ft Tank Container for LNG Liquid Oxygen Carbon Dioxide LIN LOX LAR BV CSC Certified 18Bar
    Product Datasheet
    Specifications of 40ft LNG Tank Container:
    Frame Dimensions (L x W x H)
    12192 x 2438 x 2591 mm
    Nominal Capacity
    45700 litre
    Maximum Gross Mass
    36000 kgs
    Tare Mass
    11700kgs
    Design Temperature (Tank)
    -196 °C

    Pressure
    Working
    8 bar
    Test
    11.70 bar

    Material
    Tank (Shell & Ends)
    SA612N/WNr 1.4402/1.4404
    Frame
    SPA-H,Q345D or equivalent
    Insulation
    High Vacuum Multi-layer Insulation. Aluminum Foil
    High Vacuum Multi-layer Insulation

    Safety Relief Assembly
    Brand: Herose or Chinese brand
    Quantity: Two Set
    Pressure: +8.0 bar (+116 psig)

    Liquid Level Gauge
    Grade: Grade 2.5
    Quantity: One
    Range of measure: 0~2.0m H2O


    Pressure Gauge
    Accuracy grade: Grade 1.6
    Quantity: One
    Range of measure: 0~1.6MPa
    With shut-off valve to cut off the sources of stress
    when maintenance or inspection

    Data Plates
    One set of stainless steel data plates
    Design Code
    ASME VIII Div. 2 with ASME U2-Stamp

    Approval
    Lloyds or BV Construction Certificate, IMDG, CFR49, ADR/RID, AAR
    600, CSC, TC, TIR, ISO UIC, US/UK DOT
    Certification
    45 m3 ISO UN T75 Cryogenic 40ft Tank Container for LNG Liquid Oxygen Carbon Dioxide LIN LOX LAR BV CSC Certified 18Bar
    About Tianjin ACE
    45 m3 ISO UN T75 Cryogenic 40ft Tank Container for LNG Liquid Oxygen Carbon Dioxide LIN LOX LAR BV CSC Certified 18Bar

    ACE Container is a professional Container & Parts supplier in China, which has over 10 years experience in this line, 6 years Gloden Member in Alibaba, Trade Assurance Serive in Alibaba.

    Also ACE Container has exported products to over 55 countries.

    Our Main Business Line: All kinds of Dry Cargo Container, Reefer Container, Off shore Container, Dry Container Parts and Container Lashing Equipments.


    Our Main Market: USA, Canada, Southeast Asia, Australia, New Zealand, Middle East, Middle and West Europe.

    45 m3 ISO UN T75 Cryogenic 40ft Tank Container for LNG Liquid Oxygen Carbon Dioxide LIN LOX LAR BV CSC Certified 18Bar
    FAQ

    Q:. Are your 40ft LNG Tank Container is brand new?
    Yes, our all containers are brand new.


    Q: Can you provide the drawing for confirmation?
    Sure, we'll provide the drawing after order confirmed before production.


    Q: Do you have Small or Large Volume Tank Container?
    Sure, we could do Tank Container form 1000L to 60000L.

    And could produce offshore Tank as per DNV2.7-1 / EN12079 Standard.


    Q: Do you provide OEM Service?
    Yes, we have a first-class team and could design as per your requirement.


    Q: Does your 40ft lng iso tank container meet with international requirement?
    All of our iso tank container will be approval by BV //LR / CCS and meet with below requirement.
    ISO 1496/3
    UN Transport of Dangerous Goods
    UIC International Rail Approval
    TIR International Transport Goods under Custom Seal
    CSC International Convention for Safe Containers
    DOT US Code Federal Regulations CFR49
    DOT UK Carriage of Dangerous Goods
    CTC Canadian Transport Commission (Rail)
    AAR American Association of Railroads
    FRA Federal Rail Association USA
    BAM G.D.R Domestic Approval
    ISO/TC11
