Brand Name : | ACE |
Price : | $56,000.00/pieces 1-1 pieces |
Delivery Time : | within 30 days |

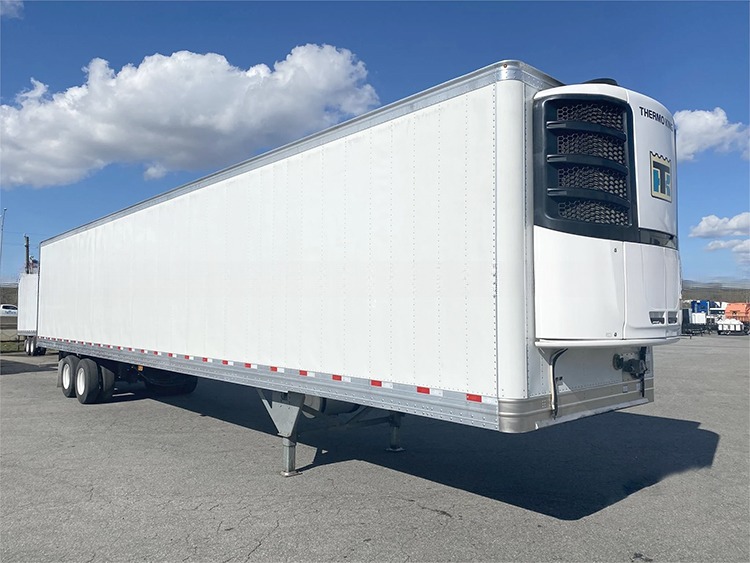

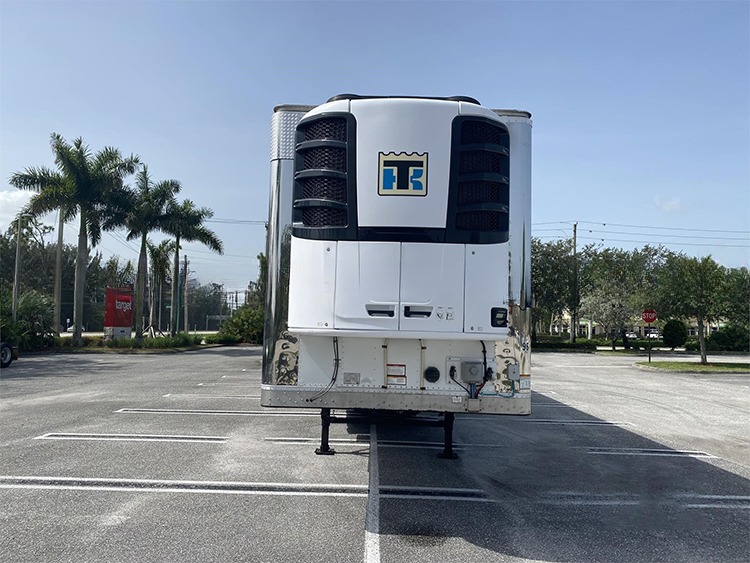

Specifications_Refrigerator Semi Trailer: | ||
1. External Size | 14000 x 2550 x 3189 mm (L x W x H) | |
2. Tare weight | 7500 kgs | |
3. Payload | 35 tons | |
4. Inside dimension | 13750 x 2340 x 1500 mm | |
5. Axle | 13 ton Fuwa brand, 150x150, 2/3 units | |
6. Capacity | 70CBM | |
7. Landing gear | Jost E100 | |
8.Kingpin | JOST 2’’ | |
9. Tire | 385/65R22.5 7pcs | |
10. Rim | 22.5 x 11.75 7pcs | |
11. Suspension | Front with Air suspension and rear three 3 axles mechanical
suspension | |
12. Elec system | Can change to 12V as per your request | |
13. Braking system | Glad hand valve, Wabco relay valve, 30/30 double brake chambers on
rear axle, 30 single chambers on other axles | |
14. Electrical system | Dual circuit, 7-way split pin receptacle plug, LED light | |
15. Painting | Primer coat+ top coat after sand blasting, color according to
Customer’s requirement | |
16. Mudguard | Plastic or steel | |
17. Others | 1 tool box, 1 wheel carrier, excluding spare wheel |
ACE Container & Parts Co., Limited, which is very famous and
professional Container and Parts supplier in China, and have been
container line for many years, also have exported our product to 85 countries by the end of 2018, including Japan, Korea, Southeast Asia, Europe, North and South
America, Africa etc.
![]() |
