    Sand Blasting 4.5mm Corten Steel C Type Z Type Shipping Container Bottom Side Rail Container Parts and Accessories

    Ask Lasest Price
    Brand Name : ACE
    Price : $66.00/pieces 50-99 pieces
    Delivery Time : within 30 days
    • Product Details
    • Company Profile

    Sand Blasting 4.5mm Corten Steel C Type Z Type Shipping Container Bottom Side Rail Container Parts and Accessories

    Sand Blasting 4.5mm Corten Steel C Type Z Type Shipping Container Bottom Side Rail Container Parts and Accessories
    Hot Sale Products
    Product Description

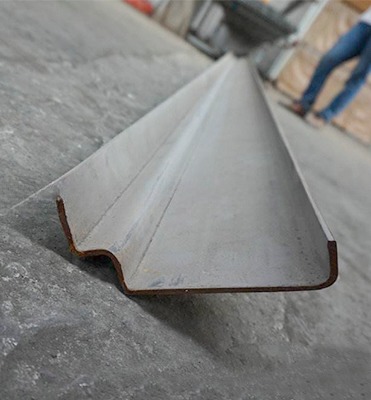

    Z Type Corten Steel Shipping Container Bottom Side Rail

    1.1 General introductions:

    ACE proide full range of Container Parts with good quality and reasonable price.
    ACE have exported container parts to over 40 countries.
    ACE are the No. 1 Seller of container parts.
    Sand Blasting 4.5mm Corten Steel C Type Z Type Shipping Container Bottom Side Rail Container Parts and Accessories

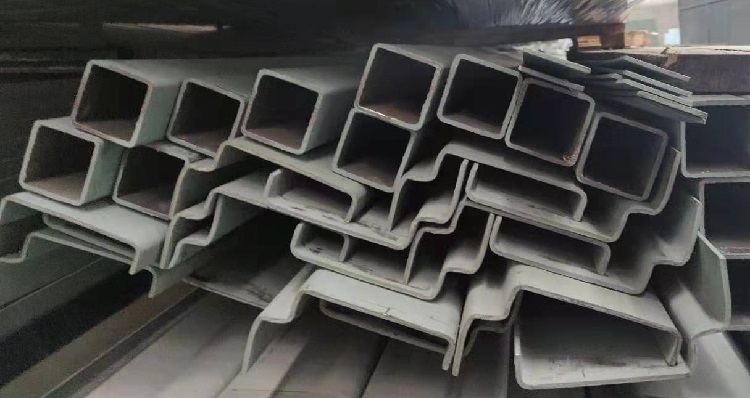

    Double Z Type Bottom Rail
    Sand Blasting 4.5mm Corten Steel C Type Z Type Shipping Container Bottom Side Rail Container Parts and Accessories
    C Type Bottom Rail
    Sand Blasting 4.5mm Corten Steel C Type Z Type Shipping Container Bottom Side Rail Container Parts and Accessories
    Sand Blasting 4.5mm Corten Steel C Type Z Type Shipping Container Bottom Side Rail Container Parts and Accessories
    Sand Blasting 4.5mm Corten Steel C Type Z Type Shipping Container Bottom Side Rail Container Parts and Accessories
    Sand Blasting 4.5mm Corten Steel C Type Z Type Shipping Container Bottom Side Rail Container Parts and Accessories

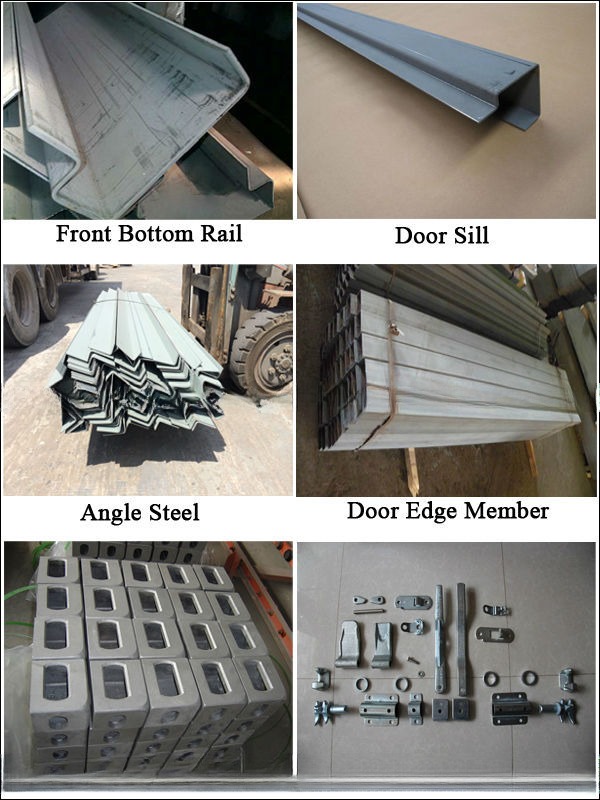

    Other related accessories
    Sand Blasting 4.5mm Corten Steel C Type Z Type Shipping Container Bottom Side Rail Container Parts and Accessories
    1.3 Full range Container Parts :
    Click Here and view more container parts.
    Product Datasheet
    Specifications
    Materials
    SM50YA
    Weight
    27.02 / 65.48Kgs
    Surface Treatment
    Shop Primer
    Dimensions
    20ft Container
    T12 x 50 x 5700mm
    T14 x 50 x 5700mm
    40ft Container
    T12 x 50 x 11841mm
    T14 x 50 x 11841mm
    Part
    Descriptions
    Dimensions(mm)
    Material








    Door End
    ISO Corner Fitting, 8pcs/set
    178x162x118
    SCW490
    Door Hinge Set
    Blade, Pin, Lug, Bush

    Container Door Locking Device


    Door Gaskets
    1143 x 2254
    EPDM
    Gasket Retainer

    SUS304
    CSC plate
    0.8 x 100 x 200
    SUS304
    Door Panel (3 CORR)
    2.0 x 943 x 1957
    CORTEN
    Door Vertical Member Edge SQ.Tube
    3.2 x 50 x 100 x 2260
    CORTEN
    Door Horizontal Member Edge, Channel
    3.0 x 50 x 150 x 1024 or 943
    CORTEN
    Door Sill
    4.5 x 158 x 150 x 2400
    CORTEN
    Door Header Lower
    4.0 x 112.5 x 113 x 137.5 x 2400
    CORTEN
    Rear Corner Post inner
    12 x 113 x 40 x 2353
    CORTEN
    Rear Corner Post outer
    6.0 x 70 x 39 x 230 x 2400
    CORTEN


    Front End
    Front End Panel
    2.0 x 1024 x 2400
    CORTEN
    Front Corner Post
    6.0 x 209 x 225 x 2400
    CORTEN
    Front Bottom Rail
    4.0 x 115 x 154 x 2400
    CORTEN
    Top End Member SQ.Tube (Horizontal)
    3.0 x 60 x 60 x 2112
    CORTEN

    Roof
    Container Roof Panel (5 CORR)
    2.0 x 1045 x 2356
    CORTEN
    Door Header Upper (Extension Plate)
    3.0 x 388 x 2400
    CORTEN
    Top End Rail (Extension Plate)
    3.0 x 397 x 2400
    CORTEN

    Side
    Container Side Panel
    1.6 x 1116 x 2400
    CORTEN
    Top Side Rail, SQ. Tube
    3.0 x 60 x 60 x 5702
    CORTEN
    Ventilator Cover
    204 x 67 x 25
    ABS





    Base
    Container Plywood Flooring, 19ply
    28 x 1160 x 2400
    Hardwood
    Floor screw
    L=5 to 120

    Bottom Side Rail
    4.5 x 50 x 162 x 30 x 5702
    CORTEN
    Cross Member Small
    4 x 45 x 122 x 45 x 2350
    CORTEN
    Cross Member Large
    4 x 45 x 122 x 75 x 2350
    CORTEN
    Fork Pocket Bottom Plate
    360 x 300
    CORTEN
    Fork Pocket Top Plate
    360 x 2350
    CORTEN
    Gooseneck parts

    CORTEN




    Other
    Lashing Ring

    SS41
    Hexagon Set screws Nuts and Bolts
    L=6 to 200
    CORTEN
    Sealed pop rivet Blind rivet
    4.8 x 16.5
    CORTEN
    Decals: Weight& Capacity, UIC, Container Type, Ower's Serious
    CORTEN
    Open Top Container: Header Hinge,Tarpaulin, Eyelet,TIR Cable, D-Ring
    Flat Rack: Twistlocks
    Company Profile
    Sand Blasting 4.5mm Corten Steel C Type Z Type Shipping Container Bottom Side Rail Container Parts and Accessories
    Sand Blasting 4.5mm Corten Steel C Type Z Type Shipping Container Bottom Side Rail Container Parts and Accessories
    Packing & Shipment
    Sand Blasting 4.5mm Corten Steel C Type Z Type Shipping Container Bottom Side Rail Container Parts and Accessories
    FAQ
    1. Are your container parts of good quality? Yes, all of our container parts are certified by ABS, BV, GL, and CCS. If our parts were not of high quality, our containers would not meet these strict certifications or pass the ABS, BV, GL, and CCS testing standards. 2. Can we order mixed parts? Certainly, you can place an order for mixed parts as needed. 3. Do your parts have surface treatments? Yes, our parts are available with either zinc-rich primer coating or galvanized finishes. 4. Can I order a container to load our parts? Yes, that would be a practical choice. Since container parts can be difficult to load and unload, using a container for shipping can help reduce handling costs at the port.
