    Offshore Oil and Gas Platform Approved CSC Certified DNV 2.7-1 Standard 10ft Offshore Tank Container with CSC Certification

    Ask Lasest Price
    Brand Name : ACE
    Certification : DNV2.7-1
    Price : $25,000.00/pieces 2-3 pieces
    Delivery Time : within 30 days
    • Product Details
    • Company Profile

    Offshore Oil and Gas Platform Approved CSC Certified DNV 2.7-1 Standard 10ft Offshore Tank Container with CSC Certification

    Offshore Oil and Gas Platform Approved CSC Certified DNV 2.7-1 Standard 10ft Offshore Tank Container with CSC Certification
    Hot Sale Products
    Product Description
    Offshore Oil and Gas Platform Approved CSC Certified DNV 2.7-1 Standard 10ft Offshore Tank Container with CSC Certification
    We will provide full set of Offshore Container Documents
    1) DNV2.7-1 Certificate issued by BV or LR or DNVGL and Sling Certificate.(When there is sling)
    2) General Arrangement Drawing
    3) Manufacturing Records, like material certificate, WPS & PQR.
    4) Inspection reports of NDT, Dimensions, Loading, Lifting, Painting.

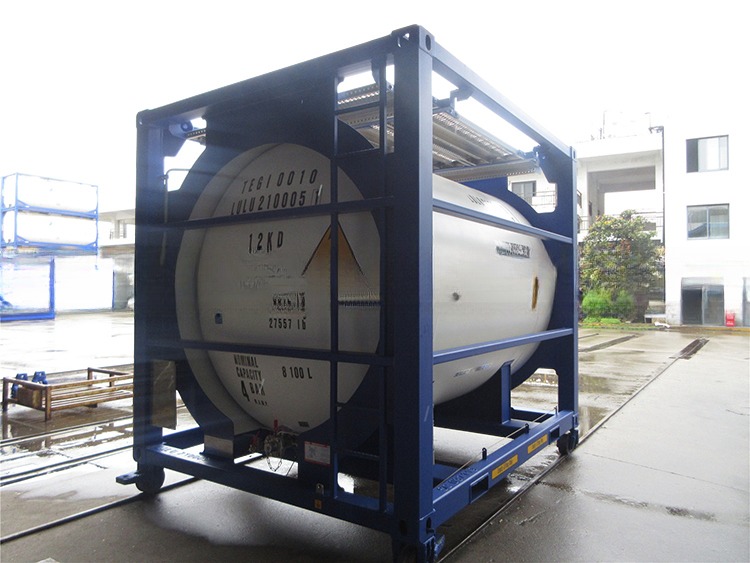

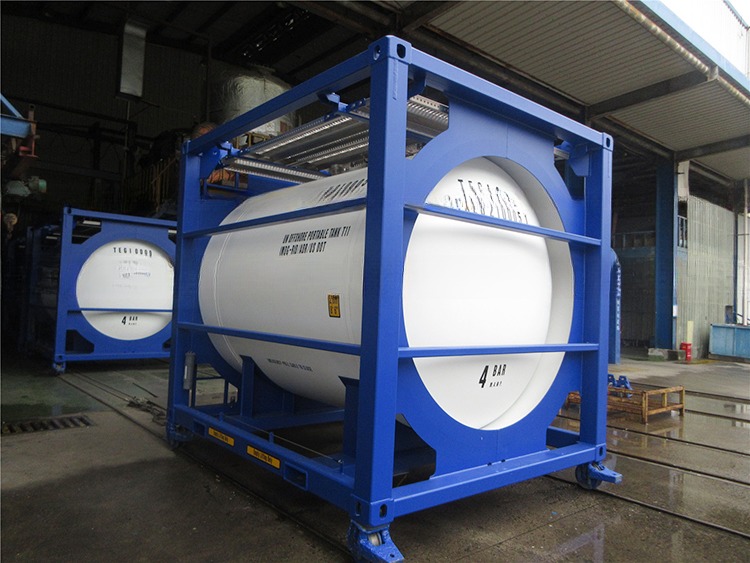

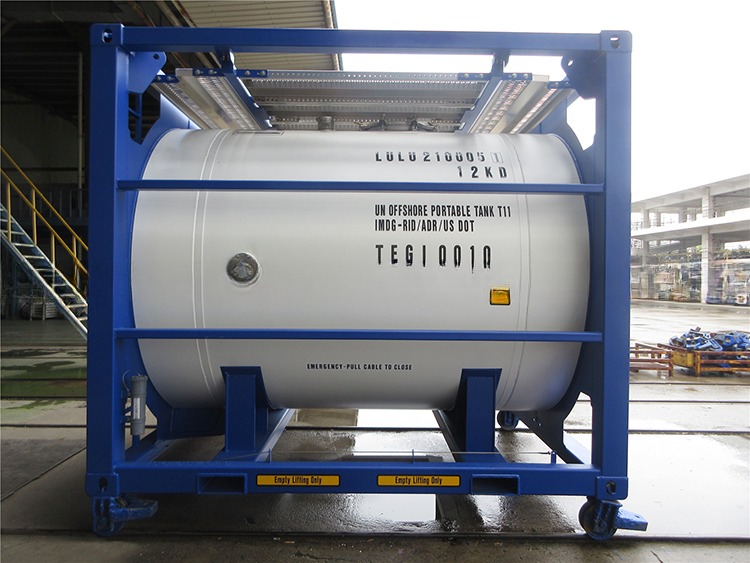

    10ft Offshore Tank Container
    Structure Material: JIS SPA-H/ GB Q345D,E36
    Corner Casting: SCW480Shell:SS304
    Welding Technique: Automatic TIG welding ( Tungsten Inert Gas arc Welding ).
    Surface treatment: Painted or Galvanized

    Meeting DNV 2.7-1 & ISO10855 standard.
    Classification Society: BV, LR, DNV certified
    Design Temperature: -20°c
    Offshore Oil and Gas Platform Approved CSC Certified DNV 2.7-1 Standard 10ft Offshore Tank Container with CSC Certification
    Offshore Oil and Gas Platform Approved CSC Certified DNV 2.7-1 Standard 10ft Offshore Tank Container with CSC Certification
    Offshore Oil and Gas Platform Approved CSC Certified DNV 2.7-1 Standard 10ft Offshore Tank Container with CSC Certification
    Offshore Oil and Gas Platform Approved CSC Certified DNV 2.7-1 Standard 10ft Offshore Tank Container with CSC Certification
    Offshore Oil and Gas Platform Approved CSC Certified DNV 2.7-1 Standard 10ft Offshore Tank Container with CSC Certification
    Offshore Oil and Gas Platform Approved CSC Certified DNV 2.7-1 Standard 10ft Offshore Tank Container with CSC Certification
    Offshore Oil and Gas Platform Approved CSC Certified DNV 2.7-1 Standard 10ft Offshore Tank Container with CSC Certification
    Product Datasheet
    Type
    8100L 10ft Offshore Tank Container
    External Size
    2991 x 2438 x 2591
    MM
    Capcity
    7600 - 8200
    L
    Maximum Gross Weight
    15000
    KGS
    Tare Weight
    2500
    KGS
    Maximum Payload
    12500
    KGS
    Design Pressure
    4
    Bar
    Tesing Pressure
    6
    Bar
    Lifting Angle
    45
    degree
    Frame Material
    SPA-H,Q345D
    Tank Shell
    SS316L
    Stacking
    No stacking
    Finish:
    Customized color
    Special Features:
    1. Approval by Main Classification Society: LR
    2. Complies With DNV2.7-1:2006 and ISO10855, IMDG,ASME
    3. Air Inlet: 3/4”(DN 20) flange ball valve fitted with a ¾” stainless steel pipe leading to the left-hand rear corner post and complete with a ¾” ball valve with BSP threaded end and stainless steel cap
    4. Safety Relief Assembly: 1-off 2½ ” BSP Super maxi High flow relive, with flameproof gauze. Pressure/vacuum model set at +4.4/-0.21bar
    5. Tank Thickness: 4.4mm
    6. Manhole: 500mm EPDM Rubber
    7. Outlet: A Highlight DN80 45° foot valve reduced to a 2” ball valve and terminating with a 2” BSP threaded end with cap
    8. Level Gauge: Options
    Packing & Delivery
    DNV 2.7-1 offshore containers has no package requirement 2x10 pcs of tanks are connected togeteher as one 20ft container.
    Our Advantages
    Offshore Oil and Gas Platform Approved CSC Certified DNV 2.7-1 Standard 10ft Offshore Tank Container with CSC Certification
    FAQ
    1. Are your offshore tank container brand new?
    Yes, we only do brand new offshore container

    2 . Can choose the color and logo?
    Sure, we can do it as per your requirement.

    3. Are there any certification and testing report for dnv offshore tank container?

    Yes, there will be DNV2.7-1 certification issued by LR/BV, also have other testing report and certification. For example, NDT testing report, Size Testing, Loading inspection, Mill Certification, Welder Certification etc.

    4. How to arrange the shipping?
    2x10ft offshore tank container connected together as one 20ft container.

    5. How about the production date?

    It's about 55 days after getting your deposit.

    6. Do you also supply offshore tank in other capacity?
    Yes, we also can do 2900L, 4500L,8200L and others as per your requirement.
